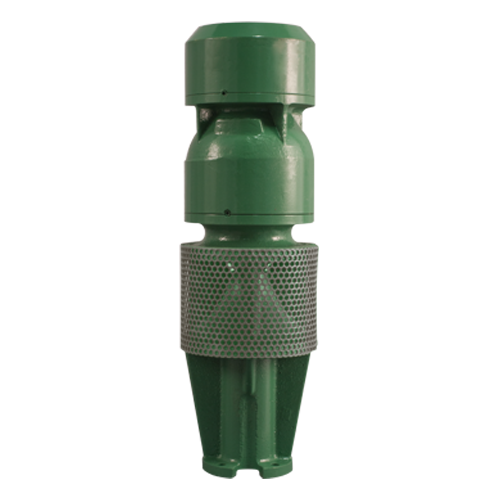

5″ Bowl Series

Category:
  • Discharge adaptor – Cast iron Available in 3″ and 4″ female, tapered thread
  • Sand collar – Bronze restricts sand entry to motor bracket bushing
  • Inlet screen – 416 stainless steel Limits entry of large objects into pump while allowing sufficient inflow of water
  • View More Details

Requires 6″ minimum well size.  Capacities to 390 GPM.

Pump Sizing Tool

Have a question? Give us a call!

800-886-2606
5″ Bowl Series

Requires 6″ minimum well size.  Capacities to 390 GPM.

Product Details

Introducing the 5″ Bowl Series: Engineered for reliability and performance in water management. Features include a cast iron discharge adaptor with 3″ and 4″ female tapered thread options, and a choice of chrome-plated C1045 steel or stainless steel pump shafts. Choose from bronze, Buna-N rubber, or Vesconite bushings. The cast iron intermediate bowl ensures durability, with an option for an unlined variant.

Impellers come in bronze or stainless steel, offering efficient water movement. The 416 stainless steel collet and bronze sand collar provide secure locking and sand protection. Trust in the 5″ Bowl Series for dependable water management.

Features and Benefits
  • Pump shaft – Chrome plated C1045 steel or stainless steel Machined, polished, and straightened
  • Bushings – Bronze, Buna-N rubber, Vesconite
  • Intermediate bowl – Cast iron baked-on porcelain lining, threaded connections, reinforced flange, registered fit. Available in unlined.
  • Impeller – Bronze (some models available in stainless steel)
  • Collet – 416 stainless steel split taper provides tight lock
  • Motor bracket – Cast iron fits 6″ (15 cm) standard NEMA motors, 5L and 5H available with 4″ NEMA standard bracket
  • Thrust collar – Bronze provides optimal upthrust protection
  • Motor coupling – 416 stainless steel provides non-corrosive connection between motor and pump shafts
  • Cable guard – Stainless steel provides motor lead protection ductile iron castings in stock
Product Specifications

Motor:

2 – 60 HP

Hertz:

60 Hz

Discharge Size:

3″ female or 4″ male

Flow:

360 GPM (1,363 LPM)

Impeller Type:

Enclosed/Open
