6″ Bowl Series – Open Type

Category:
  • Discharge adapter – Cast iron available in 3″ and 4″ female tapered thread
  • Pump shaft – Chrome plated C1045 steel or stainless steel. Machined, polished, and straightened
  • Sand collar – Bronze restricts sand entry to motor bracket bushing
  • Inlet screen – 416 stainless steel limits entry of large objects into pump while allowing sufficient inflow of water
  • View More Details

Requires 7″ minimum well size. Capacities to 400 GPM.

Pump Sizing Tool

Have a question? Give us a call!

800-886-2606

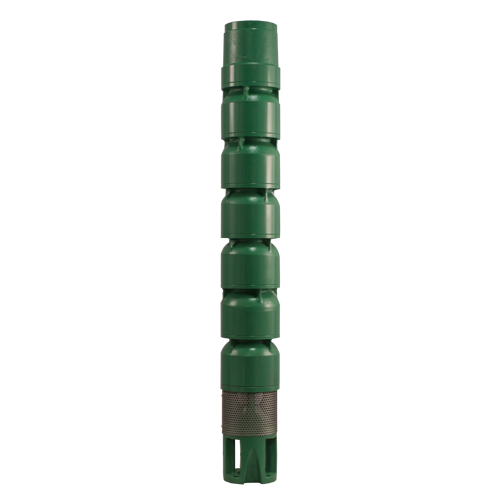

6″ Bowl Series – Open Type

Requires 7″ minimum well size. Capacities to 400 GPM.

Product Details

Introducing Wolf Pumps’ 6″ Bowl Series – Open Type, designed for high-performance water management. With optimized discharge and standard upthrust protection, our pumps ensure reliability in any application. Choose Vesconite discharge bearings for wear resistance, and select from 416 stainless steel, 316 stainless steel, or 17-4 shaft options. Long-lasting impellers and bowls crafted from 316 stainless steel maximize production efficiency. Customize with bowl bearings in vesconite, nitrile rubber, or other materials. Stainless steel components provide corrosion resistance, while the intake screen safeguards against debris. Trust Wolf Pumps for superior reliability and performance.

Features and Benefits
  • Bushings – Motor bracket – Bronze, Buna-N rubber. Intermediate bowl – Buna-N rubber or bronze
  • Intermediate bowl – Cast iron baked-on porcelain lining, threaded connections reinforced flange, registered fit
  • Impeller – Bronze open design available for a variety of heads and capacities, balanced to reduce vibration
  • Collet – 416 stainless steel split taper provides tight lock
  • Motor bracket – Cast iron fits 6″ (15 cm) standard NEMA motors
  • Thrust collar – Bronze provides optimal upthrust protection
  • Motor coupling – 416 stainless steel provides non-corrosive connection between motor and pump shafts
  • Cable guard – Stainless steel provides motor lead protection
  • Material Type – Ductile iron and stainless steel castings in stock
Product Specifications

Motor:

5 – 60 HP

Hertz:

60 Hz

Discharge Size:

3″ female or 4″ male

Stages:

1 – 16

Flow:

400 GPM (1,514 LPM)

Impeller Type:

Open
